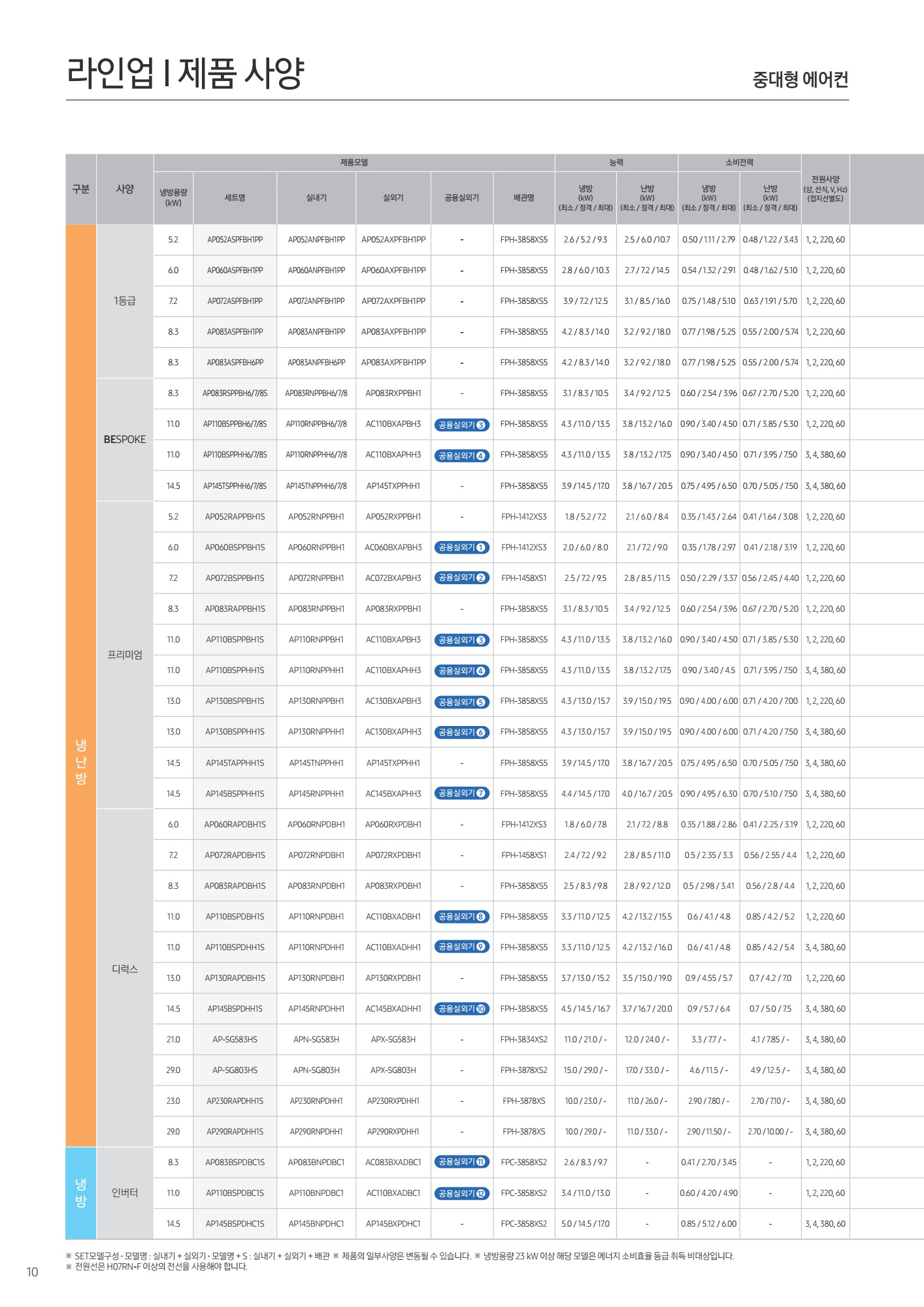

10페이지 내용 : 라인업 І 제품 사양 10 구분 사양 제품모델 능력 소비전력 전원사양 상, 선식, V, Hz 냉방용량 접지선별도 kW 세트명 실내기 실외기 공용실외기 배관명 냉방 kW 최소 정격 최대 난방 kW 최소 정격 최대 냉방 kW 최소 정격 최대 난방 kW 최소 정격 최대 1등급 5.2 AP052ASPFBH1PP AP052ANPFBH1PP AP052AXPFBH1PP FPH-3858XS5 2.6 5.2 9.3 2.5 6.0 /10.7 0.50 1.11 2.79 0.48 1.22 3.43 1, 2, 220, 60 6.0 AP060ASPFBH1PP AP060ANPFBH1PP AP060AXPFBH1PP FPH-3858XS5 2.8 6.0 10.3 2.7 7.2 14.5 0.54 1.32 2.91 0.48 1.62 5.10 1, 2, 220, 60 7.2 AP072ASPFBH1PP AP072ANPFBH1PP AP072AXPFBH1PP FPH-3858XS5 3.9 7.2 12.5 3.1 8.5 16.0 0.75 1.48 5.10 0.63 1.91 5.70 1, 2, 220, 60 8.3 AP083ASPFBH1PP AP083ANPFBH1PP AP083AXPFBH1PP FPH-3858XS5 4.2 8.3 14.0 3.2 9.2 18.0 0.77 1.98 5.25 0.55 2.00 5.74 1, 2, 220, 60 8.3 AP083ASPFBH6PP AP083ANPFBH6PP AP083AXPFBH1PP FPH-3858XS5 4.2 8.3 14.0 3.2 9.2 18.0 0.77 1.98 5.25 0.55 2.00 5.74 1, 2, 220, 60 냉난방 BESPOKE 8.3 AP083RSPPBH6/7/8S AP083RNPPBH6/7/8 AP083RXPPBH1 FPH-3858XS5 3.1 8.3 10.5 3.4 9.2 12.5 0.60 2.54 3.96 0.67 2.70 5.20 1, 2, 220, 60 11.0 AP110BSPPBH6/7/8S AP110RNPPBH6/7/8 AC110BXAPBH3 FPH-3858XS5 4.3 11.0 13.5 3.8 13.2 16.0 0.90 3.40 4.50 0.71 3.85 5.30 1, 2, 220, 60 11.0 AP110BSPPHH6/7/8S AP110RNPPHH6/7/8 AC110BXAPHH3 FPH-3858XS5 4.3 11.0 13.5 3.8 13.2 17.5 0.90 3.40 4.50 0.71 3.95 7.50 3, 4, 380, 60 14.5 AP145TSPPHH6/7/8S AP145TNPPHH6/7/8 AP145TXPPHH1 FPH-3858XS5 3.9 14.5 17.0 3.8 16.7 20.5 0.75 4.95 6.50 0.70 5.05 7.50 3, 4, 380, 60 프리미엄 5.2 AP052RAPPBH1S AP052RNPPBH1 AP052RXPPBH1 FPH-1412XS3 1.8 5.2 7.2 2.1 6.0 8.4 0.35 1.43 2.64 0.41 1.64 3.08 1, 2, 220, 60 6.0 AP060BSPPBH1S AP060RNPPBH1 AC060BXAPBH3 FPH-1412XS3 2.0 6.0 8.0 2.1 7.2 9.0 0.35 1.78 2.97 0.41 2.18 3.19 1, 2, 220, 60 7.2 AP072BSPPBH1S AP072RNPPBH1 AC072BXAPBH3 FPH-1458XS1 2.5 7.2 9.5 2.8 8.5 11.5 0.50 2.29 3.37 0.56 2.45 4.40 1, 2, 220, 60 8.3 AP083RAPPBH1S AP083RNPPBH1 AP083RXPPBH1 FPH-3858XS5 3.1 8.3 10.5 3.4 9.2 12.5 0.60 2.54 3.96 0.67 2.70 5.20 1, 2, 220, 60 11.0 AP110BSPPBH1S AP110RNPPBH1 AC110BXAPBH3 FPH-3858XS5 4.3 11.0 13.5 3.8 13.2 16.0 0.90 3.40 4.50 0.71 3.85 5.30 1, 2, 220, 60 11.0 AP110BSPPHH1S AP110RNPPHH1 AC110BXAPHH3 FPH-3858XS5 4.3 11.0 13.5 3.8 13.2 17.5 0.90 3.40 4.5 0.71 3.95 7.50 3, 4, 380, 60 13.0 AP130BSPPBH1S AP130RNPPBH1 AC130BXAPBH3 FPH-3858XS5 4.3 13.0 15.7 3.9 15.0 19.5 0.90 4.00 6.00 0.71 4.20 7.00 1, 2, 220, 60 13.0 AP130BSPPHH1S AP130RNPPHH1 AC130BXAPHH3 FPH-3858XS5 4.3 13.0 15.7 3.9 15.0 19.5 0.90 4.00 6.00 0.71 4.20 7.50 3, 4, 380, 60 14.5 AP145TAPPHH1S AP145TNPPHH1 AP145TXPPHH1 FPH-3858XS5 3.9 14.5 17.0 3.8 16.7 20.5 0.75 4.95 6.50 0.70 5.05 7.50 3, 4, 380, 60 14.5 AP145BSPPHH1S AP145RNPPHH1 AC145BXAPHH3 FPH-3858XS5 4.4 14.5 17.0 4.0 16.7 20.5 0.90 4.95 6.30 0.70 5.10 7.50 3, 4, 380, 60 디럭스 6.0 AP060RAPDBH1S AP060RNPDBH1 AP060RXPDBH1 FPH-1412XS3 1.8 6.0 7.8 2.1 7.2 8.8 0.35 1.88 2.86 0.41 2.25 3.19 1, 2, 220, 60 7.2 AP072RAPDBH1S AP072RNPDBH1 AP072RXPDBH1 FPH-1458XS1 2.4 7.2 9.2 2.8 8.5 11.0 0.5 2.35 3.3 0.56 2.55 4.4 1, 2, 220, 60 8.3 AP083RAPDBH1S AP083RNPDBH1 AP083RXPDBH1 FPH-3858XS5 2.5 8.3 9.8 2.8 9.2 12.0 0.5 2.98 3.41 0.56 2.8 4.4 1, 2, 220, 60 11.0 AP110BSPDBH1S AP110RNPDBH1 AC110BXADBH1 FPH-3858XS5 3.3 11.0 12.5 4.2 13.2 15.5 0.6 4.1 4.8 0.85 4.2 5.2 1, 2, 220, 60 11.0 AP110BSPDHH1S AP110RNPDHH1 AC110BXADHH1 FPH-3858XS5 3.3 11.0 12.5 4.2 13.2 16.0 0.6 4.1 4.8 0.85 4.2 5.4 3, 4, 380, 60 13.0 AP130RAPDBH1S AP130RNPDBH1 AP130RXPDBH1 FPH-3858XS5 3.7 13.0 15.2 3.5 15.0 19.0 0.9 4.55 5.7 0.7 4.2 7.0 1, 2, 220, 60 14.5 AP145BSPDHH1S AP145RNPDHH1 AC145BXADHH1 FPH-3858XS5 4.5 14.5 16.7 3.7 16.7 20.0 0.9 5.7 6.4 0.7 5.0 7.5 3, 4, 380, 60 21.0 AP-SG583HS APN-SG583H APX-SG583H FPH-3834XS2 11.0 21.0 12.0 24.0 3.3 7.7 4.1 7.85 3, 4, 380, 60 29.0 AP-SG803HS APN-SG803H APX-SG803H FPH-3878XS2 15.0 29.0 17.0 33.0 4.6 11.5 4.9 12.5 3, 4, 380, 60 23.0 AP230RAPDHH1S AP230RNPDHH1 AP230RXPDHH1 FPH-3878XS 10.0 23.0 11.0 26.0 2.90 7.80 2.70 7.10 3, 4, 380, 60 29.0 AP290RAPDHH1S AP290RNPDHH1 AP290RXPDHH1 FPH-3878XS 10.0 29.0 11.0 33.0 2.90 11.50 2.70 10.00 3, 4, 380, 60 냉방 인버터 8.3 AP083BSPDBC1S AP083BNPDBC1 AC083BXADBC1 FPC-3858XS2 2.6 8.3 9.7 0.41 2.70 3.45 1, 2, 220, 60 11.0 AP110BSPDBC1S AP110BNPDBC1 AC110BXADBC1 FPC-3858XS2 3.4 11.0 13.0 0.60 4.20 4.90 1, 2, 220, 60 14.5 AP145BSPDHC1S AP145BNPDHC1 AP145BXPDHC1 FPC-3858XS2 5.0 14.5 17.0 0.85 5.12 6.00 3, 4, 380, 60 ※ SET모델구성 · 모델명 실내기 + 실외기 · 모델명 + S 실내기 + 실외기 + 배관 ※ 제품의 일부사양은 변동될 수 있습니다. ※ 냉방용량 23 kW 이상 해당 모델은 에너지 소비효율 등급 취득 비대상입니다. ※ 전원선은 H07RN-F 이상의 전선을 사용해야 합니다. 중대형 에어컨 공용실외기 1 공용실외기 2 공용실외기 3 공용실외기 3 공용실외기 4 공용실외기 4 공용실외기 5 공용실외기 6 공용실외기 7 공용실외기 8 공용실외기 9 공용실외기 10 공용실외기 11 공용실외기12

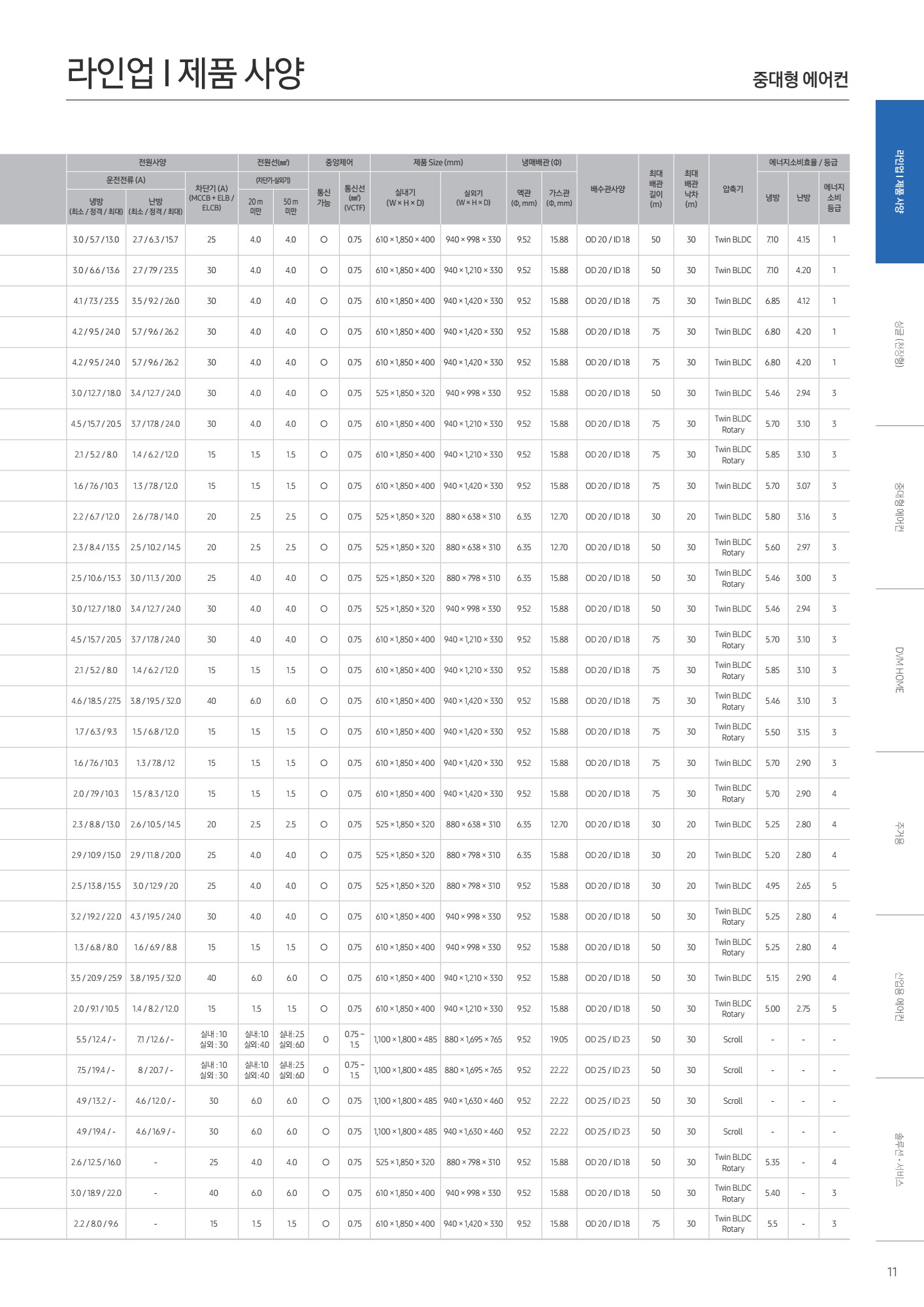

11페이지 내용 : 라인업 І 제품 사양 11 라인업 І 제품 사양 싱글 천장형 중대형 에어컨 DVM HOME 주거용 산업용 에어컨 솔루션 · 서비스 전원사양 전원선 ㎟ 중앙제어 제품 Size mm 냉매배관 Φ 배수관사양 최대 배관 길이 m 최대 배관 낙차 m 압축기 에너지소비효율 등급 운전전류 A 차단기 A MCCB + ELB ELCB 차단기-실외기 통신 가능 통신선 ㎟ VCTF 실내기 W × H × D 실외기 W × H × D 액관 Φ, mm 가스관 Φ, mm 냉방 난방 에너지 소비 최소 정격 최대 냉방 최소 정격 최대 난방 20 m 미만 50 m 미만 등급 3.0 5.7 13.0 2.7 6.3 15.7 25 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC 7.10 4.15 1 3.0 6.6 13.6 2.7 7.9 23.5 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC 7.10 4.20 1 4.1 7.3 23.5 3.5 9.2 26.0 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC 6.85 4.12 1 4.2 9.5 24.0 5.7 9.6 26.2 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC 6.80 4.20 1 4.2 9.5 24.0 5.7 9.6 26.2 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC 6.80 4.20 1 3.0 12.7 18.0 3.4 12.7 24.0 30 4.0 4.0 ○ 0.75 525 ×1,850 × 320 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC 5.46 2.94 3 4.5 15.7 20.5 3.7 17.8 24.0 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.70 3.10 3 2.1 5.2 8.0 1.4 6.2 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.85 3.10 3 1.6 7.6 10.3 1.3 7.8 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC 5.70 3.07 3 2.2 6.7 12.0 2.6 7.8 14.0 20 2.5 2.5 ○ 0.75 525 ×1,850 × 320 880 × 638 × 310 6.35 12.70 OD 20 ID 18 30 20 Twin BLDC 5.80 3.16 3 2.3 8.4 13.5 2.5 10.2 14.5 20 2.5 2.5 ○ 0.75 525 ×1,850 × 320 880 × 638 × 310 6.35 12.70 OD 20 ID 18 50 30 Twin BLDC Rotary 5.60 2.97 3 2.5 10.6 15.3 3.0 11.3 20.0 25 4.0 4.0 ○ 0.75 525 ×1,850 × 320 880 × 798 × 310 6.35 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.46 3.00 3 3.0 12.7 18.0 3.4 12.7 24.0 30 4.0 4.0 ○ 0.75 525 ×1,850 × 320 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC 5.46 2.94 3 4.5 15.7 20.5 3.7 17.8 24.0 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.70 3.10 3 2.1 5.2 8.0 1.4 6.2 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.85 3.10 3 4.6 18.5 27.5 3.8 19.5 32.0 40 6.0 6.0 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.46 3.10 3 1.7 6.3 9.3 1.5 6.8 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.50 3.15 3 1.6 7.6 10.3 1.3 7.8 12 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC 5.70 2.90 3 2.0 7.9 10.3 1.5 8.3 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.70 2.90 4 2.3 8.8 13.0 2.6 10.5 14.5 20 2.5 2.5 ○ 0.75 525 ×1,850 × 320 880 × 638 × 310 6.35 12.70 OD 20 ID 18 30 20 Twin BLDC 5.25 2.80 4 2.9 10.9 15.0 2.9 11.8 20.0 25 4.0 4.0 ○ 0.75 525 ×1,850 × 320 880 × 798 × 310 6.35 15.88 OD 20 ID 18 30 20 Twin BLDC 5.20 2.80 4 2.5 13.8 15.5 3.0 12.9 20 25 4.0 4.0 ○ 0.75 525 ×1,850 × 320 880 × 798 × 310 9.52 15.88 OD 20 ID 18 30 20 Twin BLDC 4.95 2.65 5 3.2 19.2 22.0 4.3 19.5 24.0 30 4.0 4.0 ○ 0.75 610 ×1,850 × 400 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.25 2.80 4 1.3 6.8 8.0 1.6 6.9 8.8 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.25 2.80 4 3.5 20.9 25.9 3.8 19.5 32.0 40 6.0 6.0 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC 5.15 2.90 4 2.0 9.1 10.5 1.4 8.2 12.0 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,210 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.00 2.75 5 5.5 12.4 7.1 12.6 실내 10 실외 30 실내 1.0 실외 4.0 실내 2.5 실외 6.0 O 0.75 1.5 1,100 ×1,800 × 485 880 ×1,695 × 765 9.52 19.05 OD 25 ID 23 50 30 Scroll 7.5 19.4 8 20.7 실내 10 실외 30 실내 1.0 실외 4.0 실내 2.5 실외 6.0 O 0.75 1.5 1,100 ×1,800 × 485 880 ×1,695 × 765 9.52 22.22 OD 25 ID 23 50 30 Scroll 4.9 13.2 4.6 12.0 30 6.0 6.0 ○ 0.75 1,100 ×1,800 × 485 940 ×1,630 × 460 9.52 22.22 OD 25 ID 23 50 30 Scroll 4.9 19.4 4.6 16.9 30 6.0 6.0 ○ 0.75 1,100 ×1,800 × 485 940 ×1,630 × 460 9.52 22.22 OD 25 ID 23 50 30 Scroll 2.6 12.5 16.0 25 4.0 4.0 ○ 0.75 525 ×1,850 × 320 880 × 798 × 310 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.35 4 3.0 18.9 22.0 40 6.0 6.0 ○ 0.75 610 ×1,850 × 400 940 × 998 × 330 9.52 15.88 OD 20 ID 18 50 30 Twin BLDC Rotary 5.40 3 2.2 8.0 9.6 15 1.5 1.5 ○ 0.75 610 ×1,850 × 400 940 ×1,420 × 330 9.52 15.88 OD 20 ID 18 75 30 Twin BLDC Rotary 5.5 3 중대형에어컨
