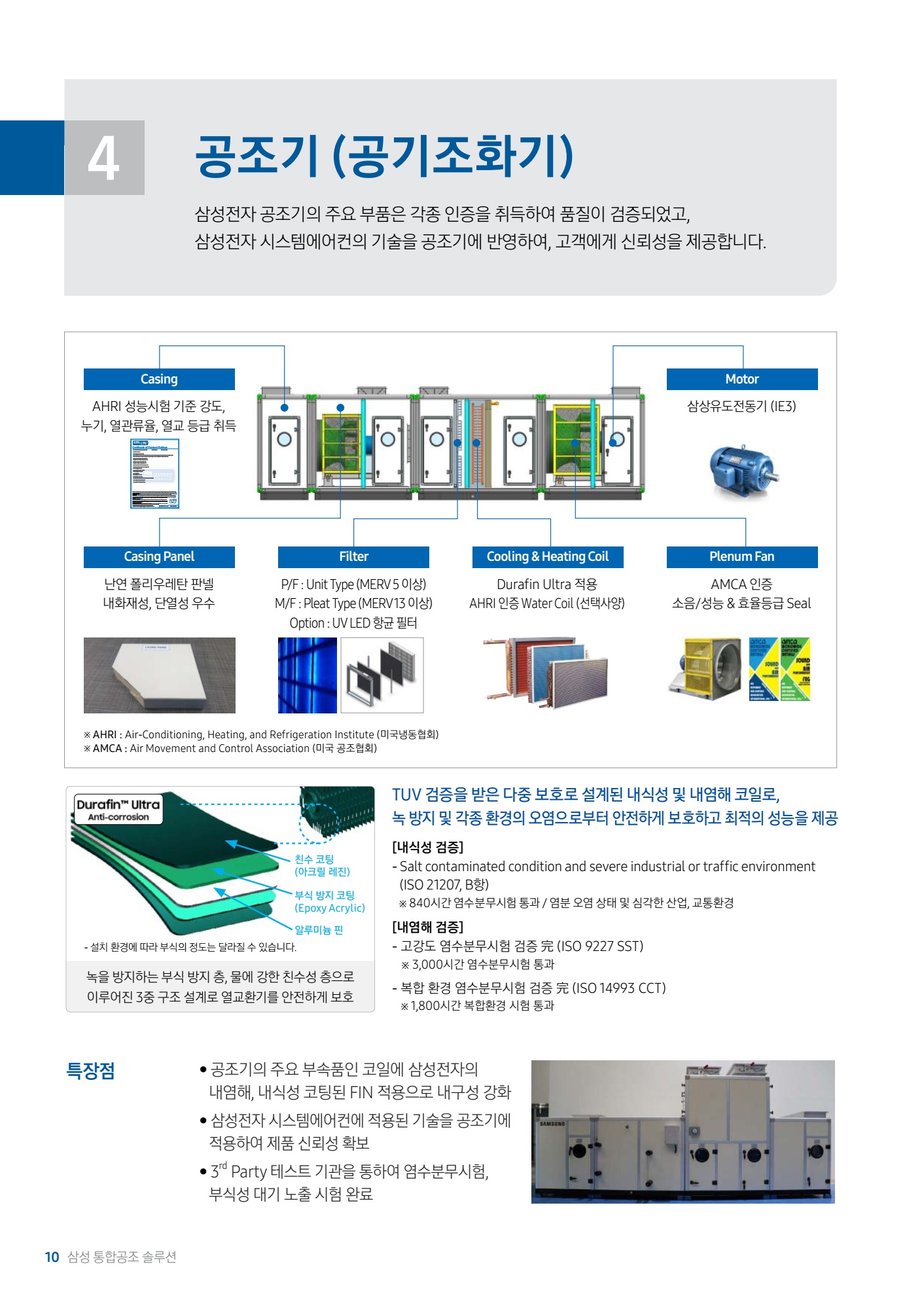

10페이지 내용 : 10 삼성 통합공조 솔루션 4 삼성전자 공조기의 주요 부품은 각종 인증을 취득하여 품질이 검증되었고, 삼성전자 시스템에어컨의 기술을 공조기에 반영하여, 고객에게 신뢰성을 제공합니다. TUV 검증을 받은 다중 보호로 설계된 내식성 및 내염해 코일로, 녹 방지 및 각종 환경의 오염으로부터 안전하게 보호하고 최적의 성능을 제공 [내식성 검증] Salt contaminated condition and severe industrial or traffc environment ISO 21207, B항 ※ 840시간 염수분무시험 통과 염분 오염 상태 및 심각한 산업, 교통환경 난연 폴리우레탄 판넬 내화재성, 단열성 우수 AHRI 성능시험 기준 강도, 누기, 열관류율, 열교 등급 취득 삼상유도전동기 IE3 P/F Unit Type MERV 5 이상 M/F Pleat Type MERV 13 이상 Option UV LED 항균 필터 녹을 방지하는 부식 방지 층, 물에 강한 친수성 층으로 이루어진 3중 구조 설계로 열교환기를 안전하게 보호 Durafn Ultra 적용 AHRI 인증 Water Coil 선택사양 AMCA 인증 소음/성능 & 효율등급 Seal [내염해 검증] 고강도 염수분무시험 검증 完 ISO 9227 SST ※ 3,000시간 염수분무시험 통과 복합 환경 염수분무시험 검증 完 ISO 14993 CCT ※ 1,800시간 복합환경 시험 통과 ● 공조기의 주요 부속품인 코일에 삼성전자의 내염해, 내식성 코팅된 FIN 적용으로 내구성 강화 ● 삼성전자 시스템에어컨에 적용된 기술을 공조기에 적용하여 제품 신뢰성 확보 ● 3rd Party 테스트 기관을 통하여 염수분무시험, 부식성 대기 노출 시험 완료 Casing Motor Casing Panel Filter Cooling & Heating Coil Plenum Fan Certifcate of Product Ratings † DISCLAIMER AHRI does not endorse the product s listed on this Certifcate and makes no representations, warranties or guarantees as to, and assumes no responsibility for, the product s listed on this Certifcate. AHRI expressly disclaims all liability for damages of any kind arising out of the use or performance of the product s , or the unauthorized alteration of data listed on this Certifcate. Certifed ratings are valid only for models and confgurations listed in the directory at www.ahridirectory.org. TERMS AND CONDITIONS This Certifcate and its contents are proprietary products of AHRI. This Certifcate shall only be used for individual, personal and confdential reference purposes. The contents of this Certifcate may not, in whole or in part, be reproduced; copied; disseminated; entered into a computer database; or otherwise utilized, in any form or manner or by any means, except for the user’s individual, personal and confdential reference. CERTIFICATE VERIFICATION The information for the model cited on this certifcate can be verifed at www.ahridirectory.org, click on “Verify Certificate” link and enter the AHRI Certifed Reference Number and the date on which the certifcate was issued, which is listed above, and the Certifcate No., which is listed at bottom right. © Air-Conditioning, Heating, and Refrigeration Institute CERTIFICATE NO.Date 01-20-2022 Ratings that are accompanied by WAS indicate an involuntary re-rate. The new published rating is shown along with the previous i.e. WAS rating. †ActiveModel Status are those that an AHRI Certification Program Participant is currently producing AND selling or offering for sale; OR new models that are being marketed but are not yet being produced.“Production Stopped” Model Status are those that an AHRI Certification Program Participant is no longer producing BUT is still selling or offering for sale. 2022 AHRI Certified Reference Number 206331608 Model Status Active Brand Name KACECO Model Designation KAH-H SERIES Rated as follows in accordance with the latest edition of ANSI/AHRI Standard 1350 I-P Mechanical Performance Rating of Central Station Air-handling Unit Casings and subject to rating accuracy by AHRI-sponsored, independent, third party testingCasing Deflection Rating Class Positive CD4 Casing Deflection Rating Class Negative CD4 Casing Air Leakage Class Positive CL12 Casing Air Leakage Class Negative CL12 Thermal Transmittance Class with Leakage CT2 Thermal Transmittance Class without Leakage CT2 Thermal Bridging Class CB3 Equipment Line Name KAH SERIES Wall Construction Double Wall Insulation Type PU Insulation Thickness 50 mm Assembly Method With Frame Range of Exterior Air Tunnel Cross- Sectional Areas ft2 15.2-109.4 Casing Design Pressure Positive 4.0 Casing Design Pressure Negative 4.0 132872055230722039 공조기 공기조화기 특장점 친수 코팅 아크릴 레진 부식 방지 코팅 Epoxy Acrylic 알루미늄 핀 설치 환경에 따라 부식의 정도는 달라질 수 있습니다. ※ AHRI Air-Conditioning, Heating, and Refrigeration Institute 미국냉동협회 ※ AMCA Air Movement and Control Association 미국 공조협회
