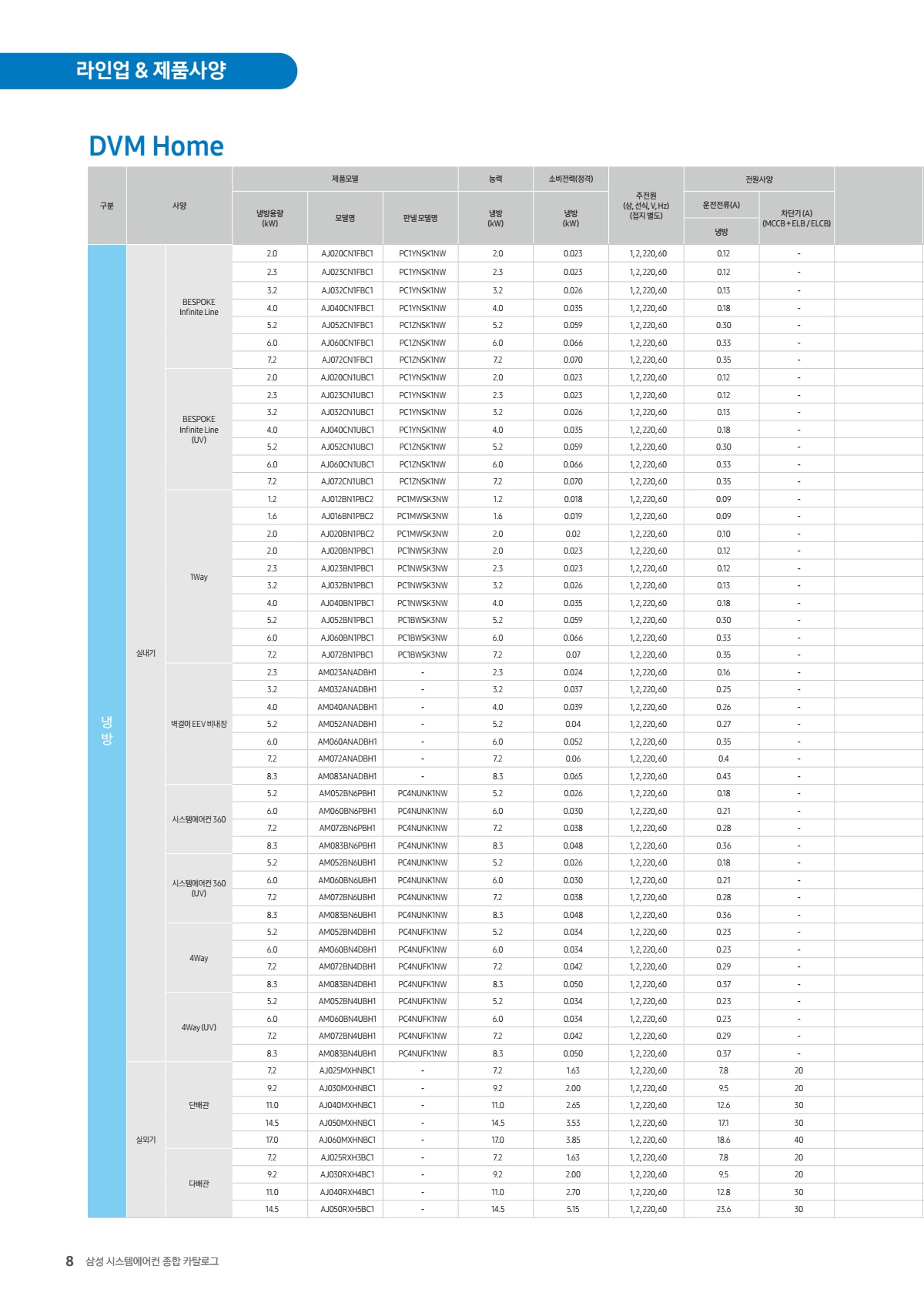

8페이지 내용 : 8 삼성 시스템에어컨 종합 카탈로그 삼성 시스템에어컨 종합 카탈로그 라인업 & 제품사양 DVM Home 구분 사양 제품모델 능력 소비전력 정격 주전원 상, 선식, V, Hz 접지 별도 전원사양 냉방용량 kW 모델명 판넬 모델명 kW 냉방 kW 냉방 운전전류 A 차단기 A MCCB + ELB ELCB 냉방 냉방 실내기 BESPOKE Infnite Line 2.0 AJ020CN1FBC1 PC1YNSK1NW 2.0 0.023 1, 2, 220, 60 0.12 2.3 AJ023CN1FBC1 PC1YNSK1NW 2.3 0.023 1, 2, 220, 60 0.12 3.2 AJ032CN1FBC1 PC1YNSK1NW 3.2 0.026 1, 2, 220, 60 0.13 4.0 AJ040CN1FBC1 PC1YNSK1NW 4.0 0.035 1, 2, 220, 60 0.18 5.2 AJ052CN1FBC1 PC1ZNSK1NW 5.2 0.059 1, 2, 220, 60 0.30 6.0 AJ060CN1FBC1 PC1ZNSK1NW 6.0 0.066 1, 2, 220, 60 0.33 7.2 AJ072CN1FBC1 PC1ZNSK1NW 7.2 0.070 1, 2, 220, 60 0.35 BESPOKE Infnite Line UV 2.0 AJ020CN1UBC1 PC1YNSK1NW 2.0 0.023 1, 2, 220, 60 0.12 2.3 AJ023CN1UBC1 PC1YNSK1NW 2.3 0.023 1, 2, 220, 60 0.12 3.2 AJ032CN1UBC1 PC1YNSK1NW 3.2 0.026 1, 2, 220, 60 0.13 4.0 AJ040CN1UBC1 PC1YNSK1NW 4.0 0.035 1, 2, 220, 60 0.18 5.2 AJ052CN1UBC1 PC1ZNSK1NW 5.2 0.059 1, 2, 220, 60 0.30 6.0 AJ060CN1UBC1 PC1ZNSK1NW 6.0 0.066 1, 2, 220, 60 0.33 7.2 AJ072CN1UBC1 PC1ZNSK1NW 7.2 0.070 1, 2, 220, 60 0.35 1Way 1.2 AJ012BN1PBC2 PC1MWSK3NW 1.2 0.018 1, 2, 220, 60 0.09 1.6 AJ016BN1PBC2 PC1MWSK3NW 1.6 0.019 1, 2, 220, 60 0.09 2.0 AJ020BN1PBC2 PC1MWSK3NW 2.0 0.02 1, 2, 220, 60 0.10 2.0 AJ020BN1PBC1 PC1NWSK3NW 2.0 0.023 1, 2, 220, 60 0.12 2.3 AJ023BN1PBC1 PC1NWSK3NW 2.3 0.023 1, 2, 220, 60 0.12 3.2 AJ032BN1PBC1 PC1NWSK3NW 3.2 0.026 1, 2, 220, 60 0.13 4.0 AJ040BN1PBC1 PC1NWSK3NW 4.0 0.035 1, 2, 220, 60 0.18 5.2 AJ052BN1PBC1 PC1BWSK3NW 5.2 0.059 1, 2, 220, 60 0.30 6.0 AJ060BN1PBC1 PC1BWSK3NW 6.0 0.066 1, 2, 220, 60 0.33 7.2 AJ072BN1PBC1 PC1BWSK3NW 7.2 0.07 1, 2, 220, 60 0.35 벽걸이 EEV 비내장 2.3 AM023ANADBH1 2.3 0.024 1, 2, 220, 60 0.16 3.2 AM032ANADBH1 3.2 0.037 1, 2, 220, 60 0.25 4.0 AM040ANADBH1 4.0 0.039 1, 2, 220, 60 0.26 5.2 AM052ANADBH1 5.2 0.04 1, 2, 220, 60 0.27 6.0 AM060ANADBH1 6.0 0.052 1, 2, 220, 60 0.35 7.2 AM072ANADBH1 7.2 0.06 1, 2, 220, 60 0.4 8.3 AM083ANADBH1 8.3 0.065 1, 2, 220, 60 0.43 시스템에어컨 360 5.2 AM052BN6PBH1 PC4NUNK1NW 5.2 0.026 1, 2, 220, 60 0.18 6.0 AM060BN6PBH1 PC4NUNK1NW 6.0 0.030 1, 2, 220, 60 0.21 7.2 AM072BN6PBH1 PC4NUNK1NW 7.2 0.038 1, 2, 220, 60 0.28 8.3 AM083BN6PBH1 PC4NUNK1NW 8.3 0.048 1, 2, 220, 60 0.36 시스템에어컨 360 UV 5.2 AM052BN6UBH1 PC4NUNK1NW 5.2 0.026 1, 2, 220, 60 0.18 6.0 AM060BN6UBH1 PC4NUNK1NW 6.0 0.030 1, 2, 220, 60 0.21 7.2 AM072BN6UBH1 PC4NUNK1NW 7.2 0.038 1, 2, 220, 60 0.28 8.3 AM083BN6UBH1 PC4NUNK1NW 8.3 0.048 1, 2, 220, 60 0.36 4Way 5.2 AM052BN4DBH1 PC4NUFK1NW 5.2 0.034 1, 2, 220, 60 0.23 6.0 AM060BN4DBH1 PC4NUFK1NW 6.0 0.034 1, 2, 220, 60 0.23 7.2 AM072BN4DBH1 PC4NUFK1NW 7.2 0.042 1, 2, 220, 60 0.29 8.3 AM083BN4DBH1 PC4NUFK1NW 8.3 0.050 1, 2, 220, 60 0.37 4Way UV 5.2 AM052BN4UBH1 PC4NUFK1NW 5.2 0.034 1, 2, 220, 60 0.23 6.0 AM060BN4UBH1 PC4NUFK1NW 6.0 0.034 1, 2, 220, 60 0.23 7.2 AM072BN4UBH1 PC4NUFK1NW 7.2 0.042 1, 2, 220, 60 0.29 8.3 AM083BN4UBH1 PC4NUFK1NW 8.3 0.050 1, 2, 220, 60 0.37 실외기 단배관 7.2 AJ025MXHNBC1 7.2 1.63 1, 2, 220, 60 7.8 20 9.2 AJ030MXHNBC1 9.2 2.00 1, 2, 220, 60 9.5 20 11.0 AJ040MXHNBC1 11.0 2.65 1, 2, 220, 60 12.6 30 14.5 AJ050MXHNBC1 14.5 3.53 1, 2, 220, 60 17.1 30 17.0 AJ060MXHNBC1 17.0 3.85 1, 2, 220, 60 18.6 40 다배관 7.2 AJ025RXH3BC1 7.2 1.63 1, 2, 220, 60 7.8 20 9.2 AJ030RXH4BC1 9.2 2.00 1, 2, 220, 60 9.5 20 11.0 AJ040RXH4BC1 11.0 2.70 1, 2, 220, 60 12.8 30 14.5 AJ050RXH5BC1 14.5 5.15 1, 2, 220, 60 23.630

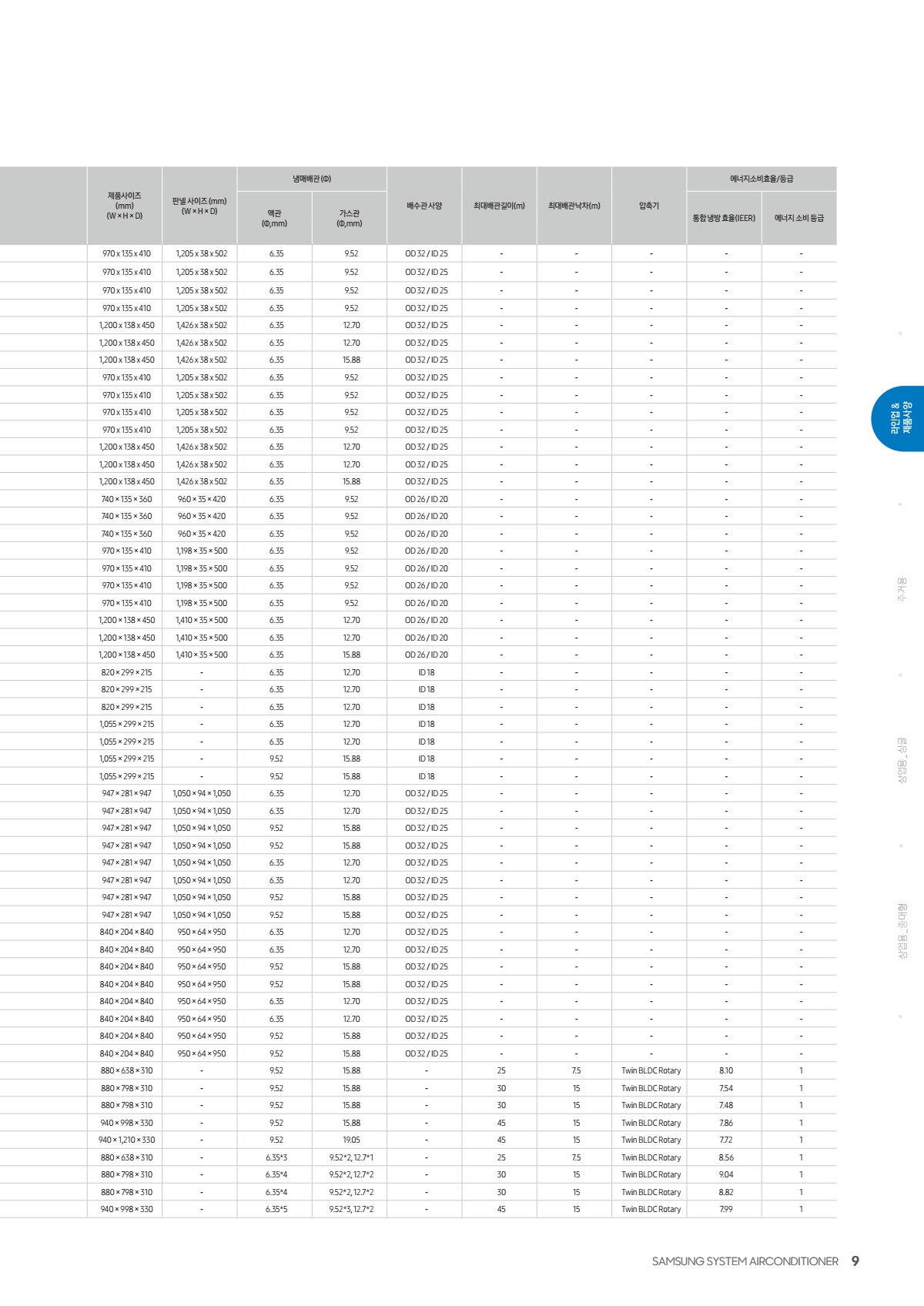

9페이지 내용 : SAMSUNG SYSTEM AIRCONDITIONER SAMSUNG SYSTEM AIRCONDITIONER 9 상업용_싱글 라인업 & 상업용_중대형 주거용 제품사양 제품사이즈 mm W × H × D 판넬 사이즈 mm W × H × D 냉매배관 Φ 배수관 사양 최대배관길이 m 최대배관낙차 m 압축기 에너지소비효율/등급 액관 Φ,mm 가스관 Φ,mm 통합 냉방 효율 IEER 에너지 소비 등급 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 12.70 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 12.70 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 15.88 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 970 x 135 x 410 1,205 x 38 x 502 6.35 9.52 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 12.70 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 12.70 OD 32 ID 25 1,200 x 138 x 450 1,426 x 38 x 502 6.35 15.88 OD 32 ID 25 740 × 135 × 360 960 × 35 × 420 6.35 9.52 OD 26 ID 20 740 × 135 × 360 960 × 35 × 420 6.35 9.52 OD 26 ID 20 740 × 135 × 360 960 × 35 × 420 6.35 9.52 OD 26 ID 20 970 × 135 × 410 1,198 × 35 × 500 6.35 9.52 OD 26 ID 20 970 × 135 × 410 1,198 × 35 × 500 6.35 9.52 OD 26 ID 20 970 × 135 × 410 1,198 × 35 × 500 6.35 9.52 OD 26 ID 20 970 × 135 × 410 1,198 × 35 × 500 6.35 9.52 OD 26 ID 20 1,200 × 138 × 450 1,410 × 35 × 500 6.35 12.70 OD 26 ID 20 1,200 × 138 × 450 1,410 × 35 × 500 6.35 12.70 OD 26 ID 20 1,200 × 138 × 450 1,410 × 35 × 500 6.35 15.88 OD 26 ID 20 820 × 299 × 215 6.35 12.70 ID 18 820 × 299 × 215 6.35 12.70 ID 18 820 × 299 × 215 6.35 12.70 ID 18 1,055 × 299 × 215 6.35 12.70 ID 18 1,055 × 299 × 215 6.35 12.70 ID 18 1,055 × 299 × 215 9.52 15.88 ID 18 1,055 × 299 × 215 9.52 15.88 ID 18 947 × 281 × 947 1,050 × 94 × 1,050 6.35 12.70 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 6.35 12.70 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 9.52 15.88 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 9.52 15.88 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 6.35 12.70 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 6.35 12.70 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 9.52 15.88 OD 32 ID 25 947 × 281 × 947 1,050 × 94 × 1,050 9.52 15.88 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 6.35 12.70 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 6.35 12.70 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 9.52 15.88 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 9.52 15.88 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 6.35 12.70 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 6.35 12.70 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 9.52 15.88 OD 32 ID 25 840 × 204 × 840 950 × 64 × 950 9.52 15.88 OD 32 ID 25 880 × 638 × 310 9.52 15.88 25 7.5 Twin BLDC Rotary 8.10 1 880 × 798 × 310 9.52 15.88 30 15 Twin BLDC Rotary 7.54 1 880 × 798 × 310 9.52 15.88 30 15 Twin BLDC Rotary 7.48 1 940 × 998 × 330 9.52 15.88 45 15 Twin BLDC Rotary 7.86 1 940 × 1,210 × 330 9.52 19.05 45 15 Twin BLDC Rotary 7.72 1 880 × 638 × 310 6.35*3 9.52*2, 12.7*1 25 7.5 Twin BLDC Rotary 8.56 1 880 × 798 × 310 6.35*4 9.52*2, 12.7*2 30 15 Twin BLDC Rotary 9.04 1 880 × 798 × 310 6.35*4 9.52*2, 12.7*2 30 15 Twin BLDC Rotary 8.82 1 940 × 998 × 330 6.35*5 9.52*3, 12.7*2 45 15 Twin BLDC Rotary 7.991
