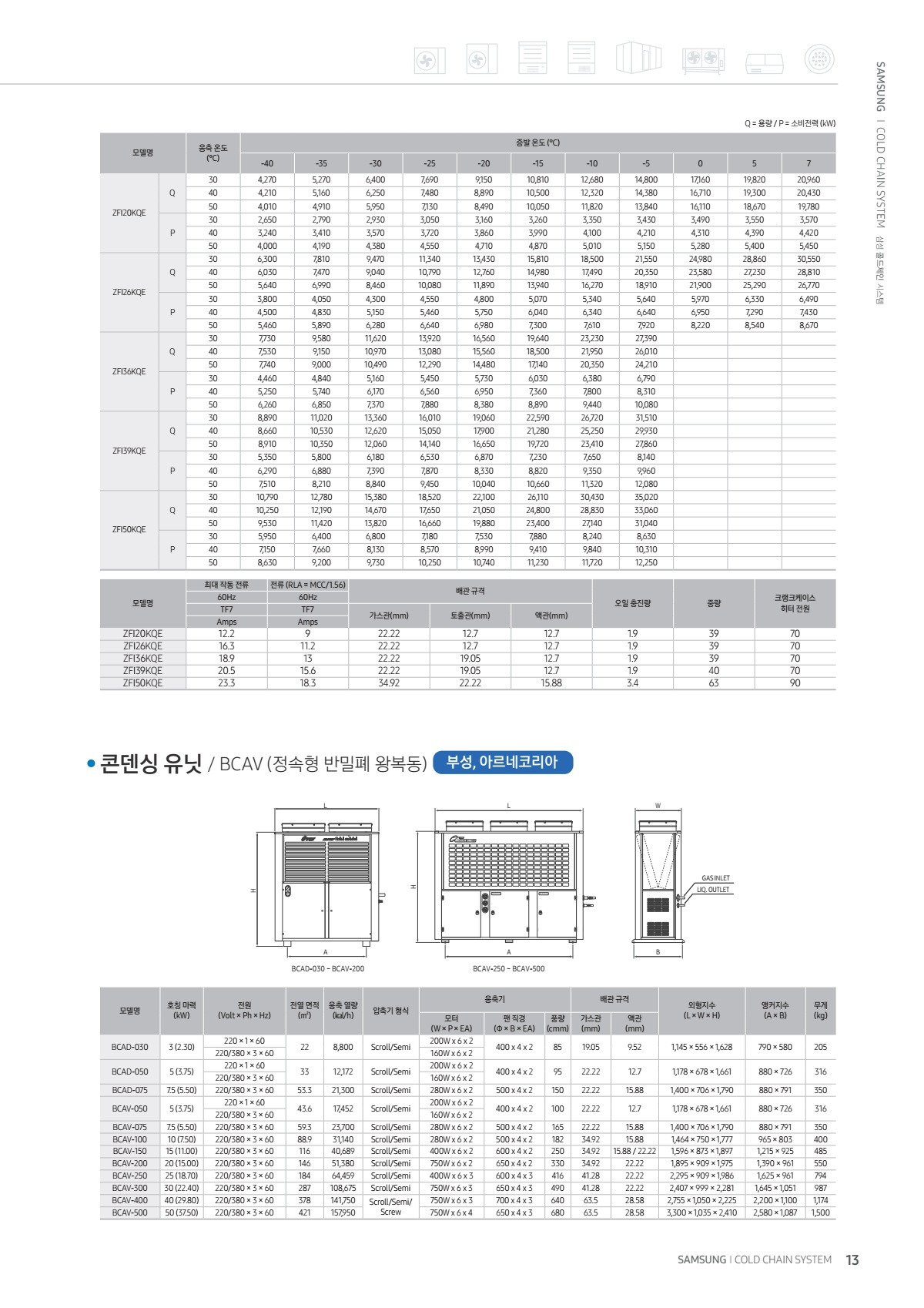

13페이지 내용 : SAMSUNG I COLD CHAIN SYSTEM 13 SAMSUNG I COLD CHAIN SYSTEM 삼성 콜드체인 시스템 모델명 응축 온도 ℃ 증발 온도 ℃ -40 -35 -30 -25 -20 -15 -10 -5 0 5 7 ZFI20KQE Q 30 4,270 5,270 6,400 7,690 9,150 10,810 12,680 14,800 17,160 19,820 20,960 40 4,210 5,160 6,250 7,480 8,890 10,500 12,320 14,380 16,710 19,300 20,430 50 4,010 4,910 5,950 7,130 8,490 10,050 11,820 13,840 16,110 18,670 19,780 P 30 2,650 2,790 2,930 3,050 3,160 3,260 3,350 3,430 3,490 3,550 3,570 40 3,240 3,410 3,570 3,720 3,860 3,990 4,100 4,210 4,310 4,390 4,420 50 4,000 4,190 4,380 4,550 4,710 4,870 5,010 5,150 5,280 5,400 5,450 ZFI26KQE Q 30 6,300 7,810 9,470 11,340 13,430 15,810 18,500 21,550 24,980 28,860 30,550 40 6,030 7,470 9,040 10,790 12,760 14,980 17,490 20,350 23,580 27,230 28,810 50 5,640 6,990 8,460 10,080 11,890 13,940 16,270 18,910 21,900 25,290 26,770 P 30 3,800 4,050 4,300 4,550 4,800 5,070 5,340 5,640 5,970 6,330 6,490 40 4,500 4,830 5,150 5,460 5,750 6,040 6,340 6,640 6,950 7,290 7,430 50 5,460 5,890 6,280 6,640 6,980 7,300 7,610 7,920 8,220 8,540 8,670 ZFI36KQE Q 30 7,730 9,580 11,620 13,920 16,560 19,640 23,230 27,390 40 7,530 9,150 10,970 13,080 15,560 18,500 21,950 26,010 50 7,740 9,000 10,490 12,290 14,480 17,140 20,350 24,210 P 30 4,460 4,840 5,160 5,450 5,730 6,030 6,380 6,790 40 5,250 5,740 6,170 6,560 6,950 7,360 7,800 8,310 50 6,260 6,850 7,370 7,880 8,380 8,890 9,440 10,080 ZFI39KQE Q 30 8,890 11,020 13,360 16,010 19,060 22,590 26,720 31,510 40 8,660 10,530 12,620 15,050 17,900 21,280 25,250 29,930 50 8,910 10,350 12,060 14,140 16,650 19,720 23,410 27,860 P 30 5,350 5,800 6,180 6,530 6,870 7,230 7,650 8,140 40 6,290 6,880 7,390 7,870 8,330 8,820 9,350 9,960 50 7,510 8,210 8,840 9,450 10,040 10,660 11,320 12,080 ZFI50KQE Q 30 10,790 12,780 15,380 18,520 22,100 26,110 30,430 35,020 40 10,250 12,190 14,670 17,650 21,050 24,800 28,830 33,060 50 9,530 11,420 13,820 16,660 19,880 23,400 27,140 31,040 P 30 5,950 6,400 6,800 7,180 7,530 7,880 8,240 8,630 40 7,150 7,660 8,130 8,570 8,990 9,410 9,840 10,310 50 8,630 9,200 9,730 10,250 10,740 11,230 11,720 12,250 모델명 최대 작동 전류 전류 RLA = MCC/1.56 배관 규격 오일 충진량 중량 크랭크케이스 히터 전원 60Hz 60Hz TF7 TF7 가스관 mm 토출관 mm 액관 mm Amps Amps ZFI20KQE 12.2 9 22.22 12.7 12.7 1.9 39 70 ZFI26KQE 16.3 11.2 22.22 12.7 12.7 1.9 39 70 ZFI36KQE 18.9 13 22.22 19.05 12.7 1.9 39 70 ZFI39KQE 20.5 15.6 22.22 19.05 12.7 1.9 40 70 ZFI50KQE 23.3 18.3 34.92 22.22 15.88 3.4 63 90 모델명 호칭 마력 kW 전원 Volt × Ph × Hz 전열 면적 ㎡ 응축 열량 ㎉/h 압축기 형식 응축기 배관 규격 외형지수 L × W × H 앵커지수 A × B 무게 모터 kg W × P × EA 팬 직경 Ф × B × EA 풍량 cmm 가스관 mm 액관 mm BCAD-030 3 2.30 220 × 1 × 60 22 8,800 Scroll/Semi 200W x 6 x 2 400 x 4 x 2 85 19.05 9.52 1,145 × 556 × 1,628 790 × 580 205 220/380 × 3 × 60 160W x 6 x 2 BCAD-050 5 3.75 220 × 1 × 60 33 12,172 Scroll/Semi 200W x 6 x 2 400 x 4 x 2 95 22.22 12.7 1,178 × 678 × 1,661 880 × 726 316 220/380 × 3 × 60 160W x 6 x 2 BCAD-075 7.5 5.50 220/380 × 3 × 60 53.3 21,300 Scroll/Semi 280W x 6 x 2 500 x 4 x 2 150 22.22 15.88 1,400 × 706 × 1,790 880 × 791 350 BCAV-050 5 3.75 220 × 1 × 60 43.6 17,452 Scroll/Semi 200W x 6 x 2 400 x 4 x 2 100 22.22 12.7 1,178 × 678 × 1,661 880 × 726 316 220/380 × 3 × 60 160W x 6 x 2 BCAV-075 7.5 5.50 220/380 × 3 × 60 59.3 23,700 Scroll/Semi 280W x 6 x 2 500 x 4 x 2 165 22.22 15.88 1,400 × 706 × 1,790 880 × 791 350 BCAV-100 10 7.50 220/380 × 3 × 60 88.9 31,140 Scroll/Semi 280W x 6 x 2 500 x 4 x 2 182 34.92 15.88 1,464 × 750 × 1,777 965 × 803 400 BCAV-150 15 11.00 220/380 × 3 × 60 116 40,689 Scroll/Semi 400W x 6 x 2 600 x 4 x 2 250 34.92 15.88 22.22 1,596 × 873 × 1,897 1,215 × 925 485 BCAV-200 20 15.00 220/380 × 3 × 60 146 51,380 Scroll/Semi 750W x 6 x 2 650 x 4 x 2 330 34.92 22.22 1,895 × 909 × 1,975 1,390 × 961 550 BCAV-250 25 18.70 220/380 × 3 × 60 184 64,459 Scroll/Semi 400W x 6 x 3 600 x 4 x 3 416 41.28 22.22 2,295 × 909 × 1,986 1,625 × 961 794 BCAV-300 30 22.40 220/380 × 3 × 60 287 108,675 Scroll/Semi 750W x 6 x 3 650 x 4 x 3 490 41.28 22.22 2,407 × 999 × 2,281 1,645 × 1,051 987 BCAV-400 40 29.80 220/380 × 3 × 60 378 141,750 Scroll/Semi/ Screw 750W x 6 x 3 700 x 4 x 3 640 63.5 28.58 2,755 × 1,050 × 2,225 2,200 × 1,100 1,174 BCAV-500 50 37.50 220/380 × 3 × 60 421 157,950 750W x 6 x 4 650 x 4 x 3 680 63.5 28.58 3,300 × 1,035 × 2,410 2,580 × 1,087 1,500 Q = 용량 P = 소비전력 kW GAS INLET LIQ. OUTLET A B L W H BCAD-030 BCAV-200 BCAV-250 BCAV-500 L A H 콘덴싱 유닛 BCAV 정속형 반밀폐 왕복동 부성,아르네코리아
