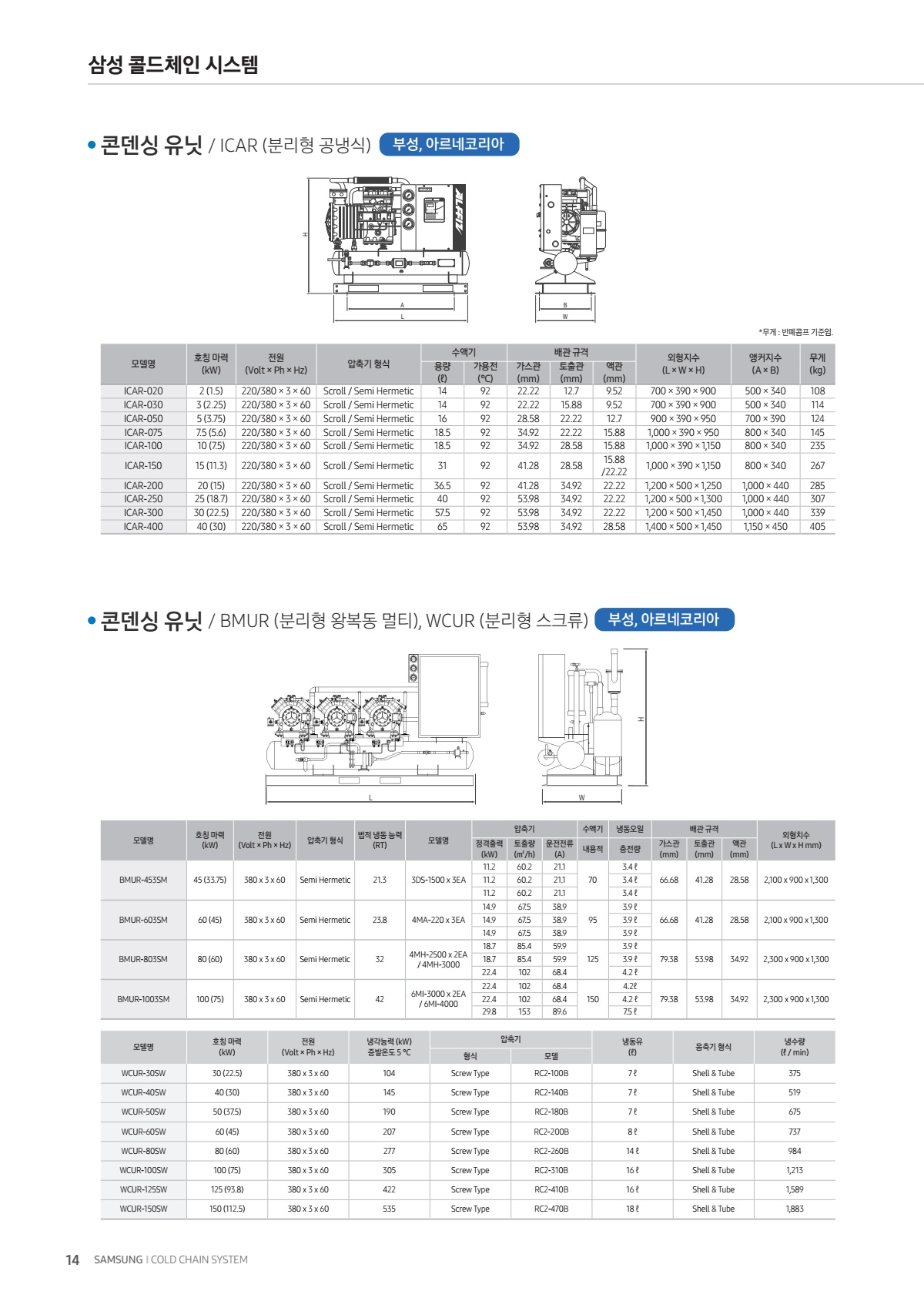

14페이지 내용 : 14 SAMSUNG I COLD CHAIN SYSTEM 삼성 콜드체인 시스템 모델명 호칭 마력 kW 전원 Volt × Ph × Hz 압축기 형식 수액기 배관 규격 외형지수 L × W × H 앵커지수 A × B 무게 용량 kg ℓ 가용전 ℃ 가스관 mm 토출관 mm 액관 mm ICAR-020 2 1.5 220/380 × 3 × 60 Scroll Semi Hermetic 14 92 22.22 12.7 9.52 700 × 390 × 900 500 × 340 108 ICAR-030 3 2.25 220/380 × 3 × 60 Scroll Semi Hermetic 14 92 22.22 15.88 9.52 700 × 390 × 900 500 × 340 114 ICAR-050 5 3.75 220/380 × 3 × 60 Scroll Semi Hermetic 16 92 28.58 22.22 12.7 900 × 390 × 950 700 × 390 124 ICAR-075 7.5 5.6 220/380 × 3 × 60 Scroll Semi Hermetic 18.5 92 34.92 22.22 15.88 1,000 × 390 × 950 800 × 340 145 ICAR-100 10 7.5 220/380 × 3 × 60 Scroll Semi Hermetic 18.5 92 34.92 28.58 15.88 1,000 × 390 × 1,150 800 × 340 235 ICAR-150 15 11.3 220/380 × 3 × 60 Scroll Semi Hermetic 31 92 41.28 28.58 15.88 /22.22 1,000 × 390 × 1,150 800 × 340 267 ICAR-200 20 15 220/380 × 3 × 60 Scroll Semi Hermetic 36.5 92 41.28 34.92 22.22 1,200 × 500 × 1,250 1,000 × 440 285 ICAR-250 25 18.7 220/380 × 3 × 60 Scroll Semi Hermetic 40 92 53.98 34.92 22.22 1,200 × 500 × 1,300 1,000 × 440 307 ICAR-300 30 22.5 220/380 × 3 × 60 Scroll Semi Hermetic 57.5 92 53.98 34.92 22.22 1,200 × 500 × 1,450 1,000 × 440 339 ICAR-400 40 30 220/380 × 3 × 60 Scroll Semi Hermetic 65 92 53.98 34.92 28.58 1,400 × 500 × 1,450 1,150 × 450 405 모델명 호칭 마력 kW 전원 Volt × Ph × Hz 압축기 형식 법적 냉동 능력 RT 모델명 정격출력 압축기 수액기 냉동오일 배관 규격 L x W x H mm 외형치수 kW 토출량 ㎡/h 운전전류 A 내용적 충전량 가스관 mm 토출관 mm mm 액관 BMUR-453SM 45 33.75 380 x 3 x 60 Semi Hermetic 21.3 3DS-1500 x 3EA 11.2 60.2 21.1 70 3.4 ℓ 11.2 60.2 21.1 3.4 ℓ 66.68 41.28 28.58 2,100 x 900 x 1,300 11.2 60.2 21.1 3.4 ℓ BMUR-603SM 60 45 380 x 3 x 60 Semi Hermetic 23.8 4MA-220 x 3EA 14.9 67.5 38.9 95 3.9 ℓ 14.9 67.5 38.9 3.9 ℓ 66.68 41.28 28.58 2,100 x 900 x 1,300 14.9 67.5 38.9 3.9 ℓ BMUR-803SM 80 60 380 x 3 x 60 Semi Hermetic 32 4MH-2500 x 2EA 4MH-3000 18.7 85.4 59.9 125 3.9 ℓ 18.7 85.4 59.9 3.9 ℓ 79.38 53.98 34.92 2,300 x 900 x 1,300 22.4 102 68.4 4.2 ℓ BMUR-1003SM 100 75 380 x 3 x 60 Semi Hermetic 42 6MI-3000 x 2EA 6MI-4000 22.4 102 68.4 150 4.2ℓ 22.4 102 68.4 4.2 ℓ 79.38 53.98 34.92 2,300 x 900 x 1,300 29.8 153 89.6 7.5 ℓ 모델명 호칭 마력 kW 전원 Volt × Ph × Hz 냉각능력 kW 증발온도 5 ℃ 압축기 냉동유 형식 모델 ℓ 응축기 형식 ℓ min 냉수량 WCUR-30SW 30 22.5 380 x 3 x 60 104 Screw Type RC2-100B 7 ℓ Shell & Tube 375 WCUR-40SW 40 30 380 x 3 x 60 145 Screw Type RC2-140B 7 ℓ Shell & Tube 519 WCUR-50SW 50 37.5 380 x 3 x 60 190 Screw Type RC2-180B 7 ℓ Shell & Tube 675 WCUR-60SW 60 45 380 x 3 x 60 207 Screw Type RC2-200B 8 ℓ Shell & Tube 737 WCUR-80SW 80 60 380 x 3 x 60 277 Screw Type RC2-260B 14 ℓ Shell & Tube 984 WCUR-100SW 100 75 380 x 3 x 60 305 Screw Type RC2-310B 16 ℓ Shell & Tube 1,213 WCUR-125SW 125 93.8 380 x 3 x 60 422 Screw Type RC2-410B 16 ℓ Shell & Tube 1,589 WCUR-150SW 150 112.5 380 x 3 x 60 535 Screw Type RC2-470B 18 ℓ Shell & Tube 1,883 *무게 반폐콤프 기준임. H A L B W L W H 콘덴싱 유닛 ICAR 분리형 공냉식 콘덴싱 유닛 BMUR 분리형 왕복동 멀티 , WCUR 분리형 스크류 부성, 아르네코리아 부성,아르네코리아

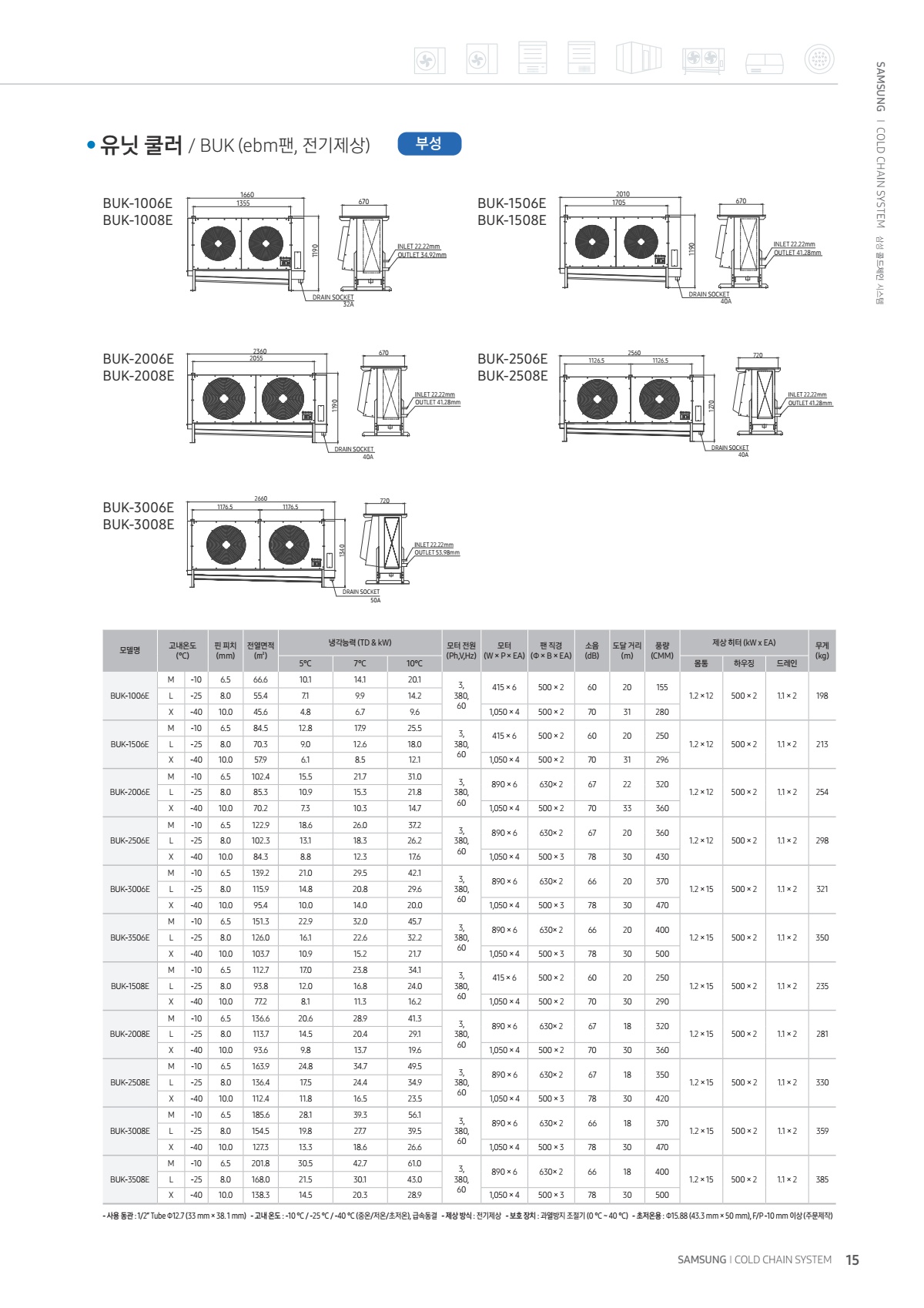

15페이지 내용 : SAMSUNG I COLD CHAIN SYSTEM 15 SAMSUNG I COLD CHAIN SYSTEM 삼성 콜드체인 시스템 모델명 고내온도 ℃ 핀 피치 mm 전열면적 ㎡ 냉각능력 TD & kW 모터 전원 Ph,V,Hz 모터 W × P × EA 팬 직경 Ф × B × EA 소음 dB 도달 거리 m 풍량 CMM 제상 히터 kW x EA 무게 kg 5℃ 7℃ 10℃ 몸통 하우징 드레인 BUK-1006E M -10 6.5 66.6 10.1 14.1 20.1 3, 380, 60 415 × 6 500 × 2 60 20 155 L -25 8.0 55.4 7.1 9.9 14.2 1.2 × 12 500 × 2 1.1 × 2 198 X -40 10.0 45.6 4.8 6.7 9.6 1,050 × 4 500 × 2 70 31 280 BUK-1506E M -10 6.5 84.5 12.8 17.9 25.5 3, 380, 60 415 × 6 500 × 2 60 20 250 L -25 8.0 70.3 9.0 12.6 18.0 1.2 × 12 500 × 2 1.1 × 2 213 X -40 10.0 57.9 6.1 8.5 12.1 1,050 × 4 500 × 2 70 31 296 BUK-2006E M -10 6.5 102.4 15.5 21.7 31.0 3, 380, 60 890 × 6 630× 2 67 22 320 L -25 8.0 85.3 10.9 15.3 21.8 1.2 × 12 500 × 2 1.1 × 2 254 X -40 10.0 70.2 7.3 10.3 14.7 1,050 × 4 500 × 2 70 33 360 BUK-2506E M -10 6.5 122.9 18.6 26.0 37.2 3, 380, 60 890 × 6 630× 2 67 20 360 L -25 8.0 102.3 13.1 18.3 26.2 1.2 × 12 500 × 2 1.1 × 2 298 X -40 10.0 84.3 8.8 12.3 17.6 1,050 × 4 500 × 3 78 30 430 BUK-3006E M -10 6.5 139.2 21.0 29.5 42.1 3, 380, 60 890 × 6 630× 2 66 20 370 L -25 8.0 115.9 14.8 20.8 29.6 1.2 × 15 500 × 2 1.1 × 2 321 X -40 10.0 95.4 10.0 14.0 20.0 1,050 × 4 500 × 3 78 30 470 BUK-3506E M -10 6.5 151.3 22.9 32.0 45.7 3, 380, 60 890 × 6 630× 2 66 20 400 L -25 8.0 126.0 16.1 22.6 32.2 1.2 × 15 500 × 2 1.1 × 2 350 X -40 10.0 103.7 10.9 15.2 21.7 1,050 × 4 500 × 3 78 30 500 BUK-1508E M -10 6.5 112.7 17.0 23.8 34.1 3, 380, 60 415 × 6 500 × 2 60 20 250 L -25 8.0 93.8 12.0 16.8 24.0 1.2 × 15 500 × 2 1.1 × 2 235 X -40 10.0 77.2 8.1 11.3 16.2 1,050 × 4 500 × 2 70 30 290 BUK-2008E M -10 6.5 136.6 20.6 28.9 41.3 3, 380, 60 890 × 6 630× 2 67 18 320 L -25 8.0 113.7 14.5 20.4 29.1 1.2 × 15 500 × 2 1.1 × 2 281 X -40 10.0 93.6 9.8 13.7 19.6 1,050 × 4 500 × 2 70 30 360 BUK-2508E M -10 6.5 163.9 24.8 34.7 49.5 3, 380, 60 890 × 6 630× 2 67 18 350 L -25 8.0 136.4 17.5 24.4 34.9 1.2 × 15 500 × 2 1.1 × 2 330 X -40 10.0 112.4 11.8 16.5 23.5 1,050 × 4 500 × 3 78 30 420 BUK-3008E M -10 6.5 185.6 28.1 39.3 56.1 3, 380, 60 890 × 6 630× 2 66 18 370 L -25 8.0 154.5 19.8 27.7 39.5 1.2 × 15 500 × 2 1.1 × 2 359 X -40 10.0 127.3 13.3 18.6 26.6 1,050 × 4 500 × 3 78 30 470 BUK-3508E M -10 6.5 201.8 30.5 42.7 61.0 3, 380, 60 890 × 6 630× 2 66 18 400 L -25 8.0 168.0 21.5 30.1 43.0 1.2 × 15 500 × 2 1.1 × 2 385 X -40 10.0 138.3 14.5 20.3 28.9 1,050 × 4 500 × 3 78 30 500 BUK-1006E BUK-1008E BUK-1506E BUK-1508E BUK-2006E BUK-2008E BUK-2506E BUK-2508E BUK-3006E BUK-3008E 사용 동관 1/2“ Tube Ф12.7 33 mm × 38. 1 mm 고내 온도 -10 ℃ -25 ℃ -40 ℃ 중온/저온/초저온 , 급속동결 제상 방식 전기제상 보호 장치 과열방지 조절기 0 ℃ 40 ℃ 초저온용 Ф15.88 43.3 mm × 50 mm , F/P -10 mm 이상 주문제작 32A 1660 1355 1190 OUTLET 34.92mm INLET 22.22mm 670 DRAIN SOCKET 2055 2360 1190 DRAIN SOCKET 40A OUTLET 41.28mm INLET 22.22mm 670 720 OUTLET 53.98mm INLET 22.22mm 1176.5 1176.5 2660 1340 DRAIN SOCKET 50A OUTLET 41.28mm INLET 22.22mm 720 1126.5 1126.5 2560 1270 DRAIN SOCKET 40A 40A 2010 1705 1190 OUTLET 41.28mm INLET 22.22mm 670 DRAIN SOCKET 유닛 쿨러 BUK ebm팬, 전기제상부성
